AQUAFINE Whole-House Water Softner Systems
Our Water Softener Systems

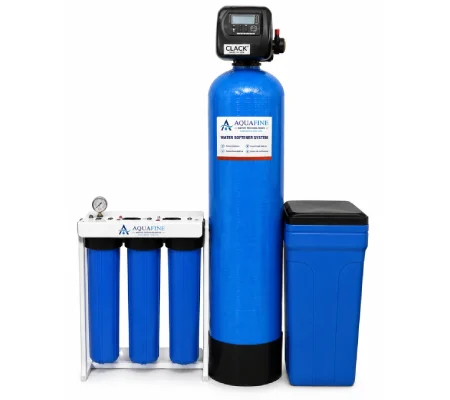

Compact Cabinet + Triple Jumbo Filtration
A compact whole-house solution combining automatic water softening with three stages of pre-filtration.
Includes
- Integrated salt/brine cabinet
- FRP softening vessel
- Softening resin & gravel support media
- Clack automatic control valve
- PP sediment filter
- GAC carbon filter
- CTO carbon-block filter
Ideal for: Homes and villas where compact installation and pre-filtration are important.

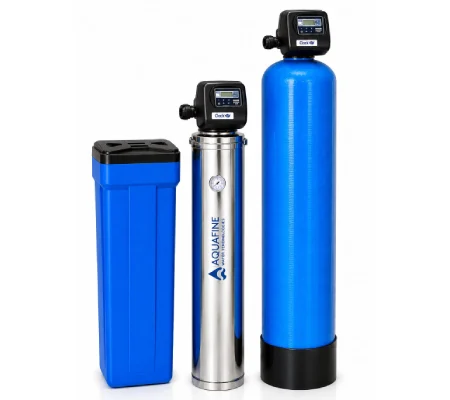

Compact Cabinet + Stainless-Steel Nano Filtration
A premium compact configuration combining automatic water softening with a stainless-steel fine-filtration stage.
Includes
- Integrated salt/brine cabinet
- FRP softening vessel
- Softening resin & gravel support media
- Clack automatic control valve
- Stainless-steel nano filtration stage
- Inlet and outlet connections
Ideal for: Customers looking for a compact, premium-looking softening and filtration system.
Standard System + Triple Jumbo Filtration
A flexible whole-house configuration with a separate brine tank and triple Jumbo filtration.
Includes
- Separate salt/brine tank
- FRP softening vessel
- Softening resin & gravel support media
- Clack automatic control valve
- PP + GAC + CTO filtration
- Inlet and outlet connections
Ideal for: Villas and larger residential applications where a separate brine tank and flexible installation are preferred.
Specifcations
| Component | Function |
|---|---|
| FRP Vessel | Main pressure vessel containing the softening media. |
| Softening Resin | Ion-exchange media that reduces hardness-causing calcium and magnesium. |
| Quartz / Gravel Media | Supports the softening media bed inside the vessel. |
| Clack Automatic Control Valve | Controls service, backwash, regeneration and rinse cycles. |
| Brine / Salt Tank | Stores salt cubes and provides brine for resin regeneration. |
| Triple Jumbo Filters | PP, GAC and CTO filtration for pre-treatment. |
| Stainless-Steel Nano Filter | Fine-filtration option available with the compact nano configuration. |
How the Aquafine Water Softener Works
From incoming hard water to soft water throughout your home
-
1
Pre-Filtration
Incoming water passes through the selected filtration stage to reduce sediment and unwanted impurities.
-
2
Softening
Filtered water enters the FRP vessel containing softening resin. The resin exchanges hardness-causing calcium and magnesium ions.
-
3
Soft Water to the Home
The softened water is supplied to showers, bathrooms, laundry areas, cleaning points and other connected household outlets.
-
4
Automatic Regeneration
When required, the Clack automatic control valve initiates the regeneration process.
-
5
Brine & Rinse
Salt brine recharges the softening resin, followed by a rinse cycle before the system returns to normal operation.
Result
Softer water throughout the home with reduced hardness effects on skin, hair, laundry, fixtures and water-using appliances.
System Selection
The correct system size and configuration depend on:
- ✓ Water hardness
- ✓ Number of occupants
- ✓ Daily water consumption
- ✓ Peak water flow
- ✓ Number of bathrooms
- ✓ Installation space
- ✓ Required filtration arrangement
Key Benefits
Why choose an Aquafine water softener?
- ✓ Softer-feeling skin and a more comfortable bathing experience
- ✓ Smoother, easier-to-manage hair
- ✓ Helps reduce scale build-up on taps, showers, glass and fixtures
- ✓ Helps protect water heaters and water-using appliances from scale
- ✓ Supports more effective laundry washing
- ✓ Helps reduce visible hardness-related deposits
- ✓ Treats the incoming water supply for whole-house use
